Soundcraft Notepad-12FX Small-Format Analog Mixing Console with USB I/O and Lexicon Effects

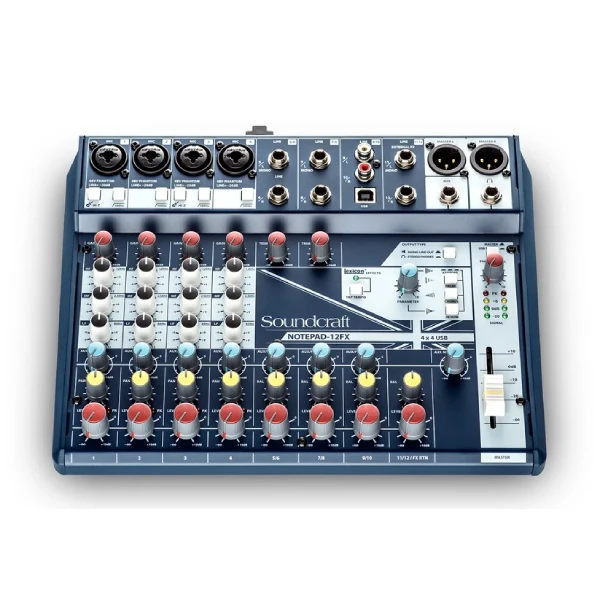

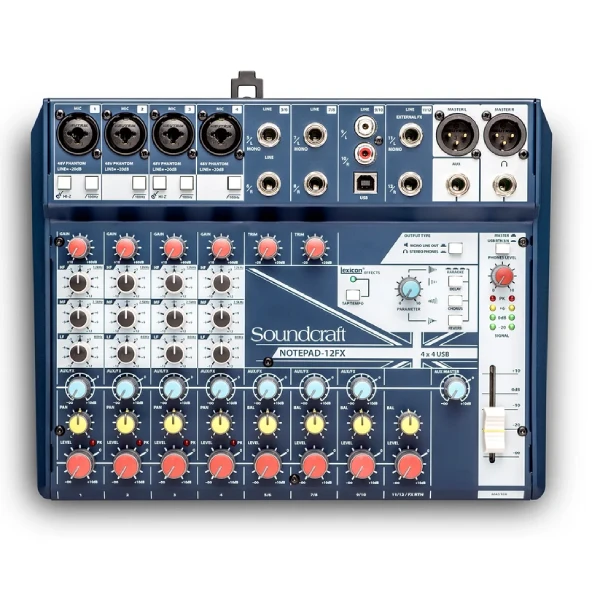

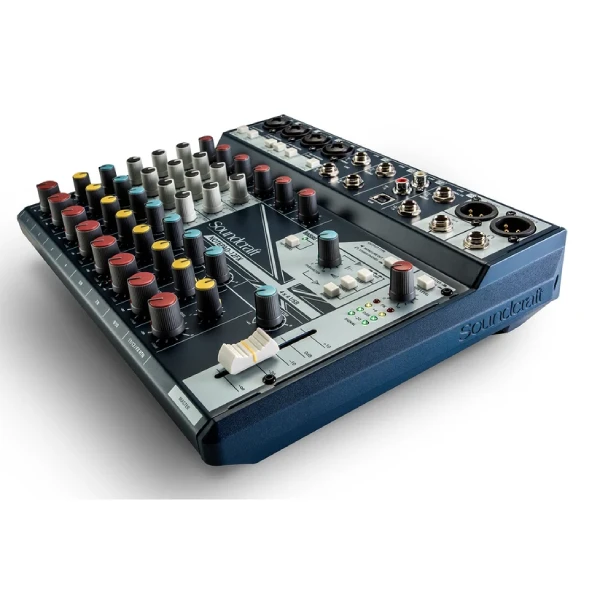

The Soundcraft Notepad-12FX is a compact 12-channel analog mixer designed for music, podcasts, recording, rehearsals and small live setups. It combines professional Soundcraft microphone preamps with an integrated USB audio interface, Lexicon digital effects and an easy-to-use traditional mixer layout. Its compact metal construction makes it suitable for desktop studios as well as portable setups.
Key Features
- 12-channel compact analog mixing console
- 4 mic/line combo inputs with Soundcraft microphone preamps
- Integrated USB audio interface for Mac and PC
- Four assignable USB recording inputs
- Built-in Lexicon reverb, chorus and delay effects
- Tap Tempo control for time-based effects
- 3-band EQ on the four microphone channels
- Aux/FX send for flexible signal routing
- Automatic ducking for clearer speech over USB background audio
- Master fader with LED output metering
- Dedicated headphone level control
- XLR and 1/4-inch connectivity
- Durable metal enclosure
- Price: $585.00 NZD
Payment. Advance payment by card or digital wallet in NZD (GST included); no cash on delivery; shipping at customer cost by tracked NZ Post within New Zealand and to selected international destinations.
Warranty. Limited warranty on musical instruments and audio gear covers manufacturing faults; we repair first, then replace or refund, no change-of-mind refunds, custom orders non-refundable, and exchanges for unopened items considered under New Zealand consumer law.
Description
Soundcraft Notepad-12FX Small-Format Analog Mixing Console with USB I/O and Lexicon Effects
The Soundcraft Notepad-12FX brings Soundcraft’s professional audio heritage into a compact and practical desktop mixer. Designed for musicians, singer-songwriters, podcasters, content creators and small live setups, it combines analog mixing controls with digital connectivity and built-in Lexicon effects. The straightforward channel layout makes it approachable for beginners while offering useful routing and sound-shaping controls for experienced users.
Professional Soundcraft Audio Quality
The Notepad-12FX features four professional-grade Soundcraft mic/line preamps with dependable XLR and 1/4-inch connectivity. These inputs are designed for connecting microphones, instruments and other audio sources while maintaining clean, reliable sound. Two of the microphone inputs also support Hi-Z sources for greater connection flexibility.

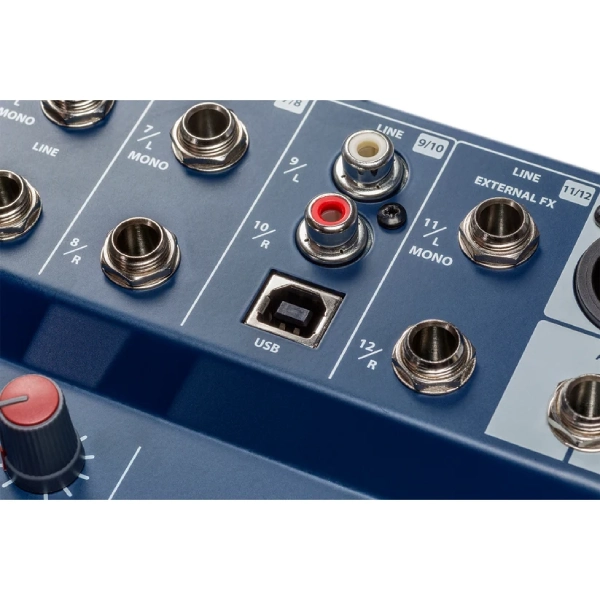

Integrated USB Audio Interface
Connect the Notepad-12FX to a Mac or PC to record, edit and play back audio using compatible recording or editing software. Its USB system supports four assignable inputs to the computer, allowing sources from the microphone inputs, line inputs or master mix to be routed for recording. Mac operation is plug-and-play, while Windows systems require the Soundcraft driver.

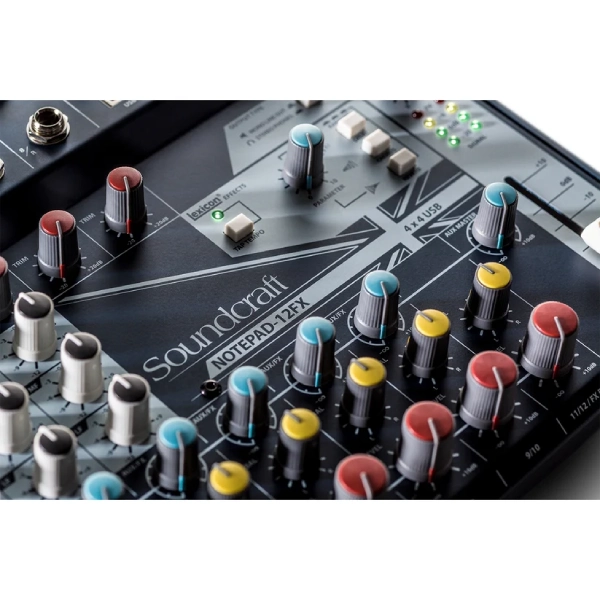

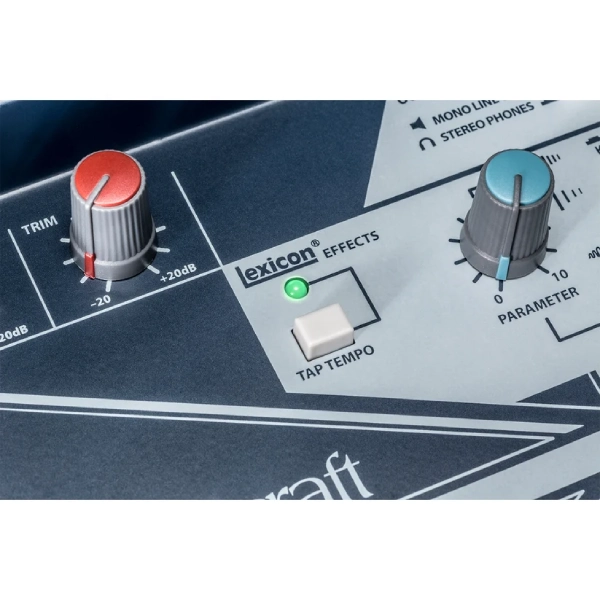

Built-In Lexicon Effects
Studio-quality Lexicon processing is built directly into the mixer, giving you access to reverb, chorus and delay without requiring a separate effects processor. Tap Tempo control makes it easier to match delay-based effects to your music or performance.

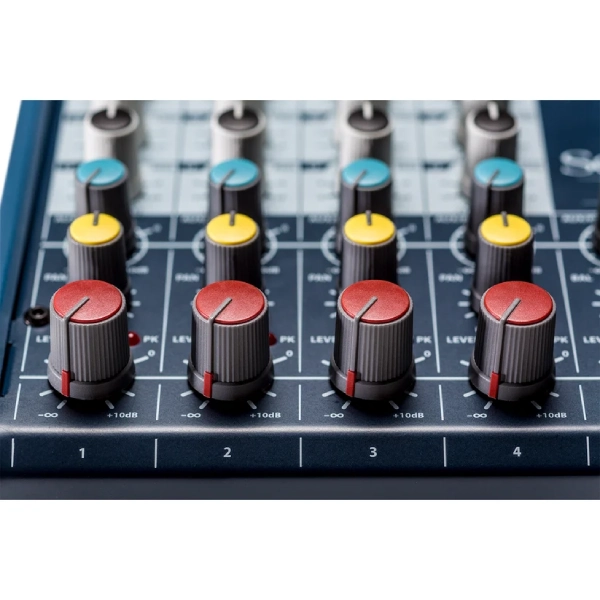

Easy Mixing and Sound Control
The traditional Soundcraft channel-strip layout provides EQ, Aux/FX controls, pan or balance and individual channel level adjustment. The four mic channels feature 3-band EQ, while the master section includes a physical fader, LED level metering and dedicated headphone monitoring control.
Automatic Ducking
The Notepad-12FX includes a useful ducking function for spoken-word applications. When enabled, it automatically reduces USB background audio when the main source is detected, helping speech remain clear during podcasts, presentations and other voice-focused applications.

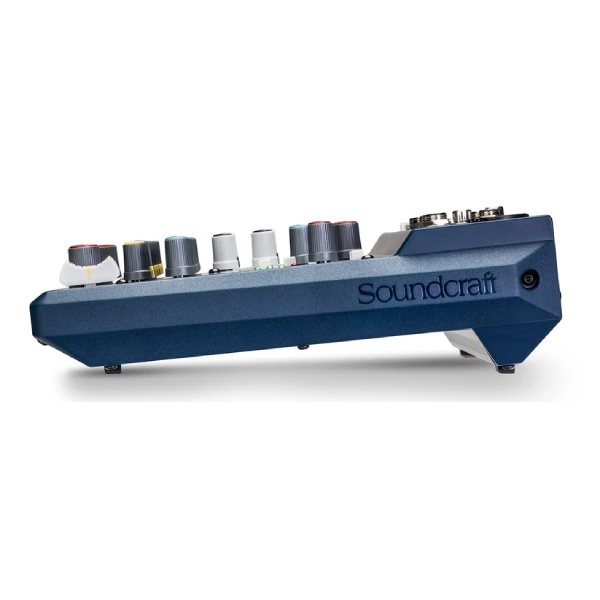

Compact and Durable Design
Its compact footprint makes the Notepad-12FX practical for home studios, podcast desks, rehearsals and portable live setups. A durable metal enclosure provides additional protection for regular use and transport.
Ideal For
- Singer-songwriters and musicians
- Podcast and spoken-word recording
- Home and project studios
- Content creation and video production
- Rehearsals and small live performances
- Presentations and small event audio setups
Key Technical Details
- Mic/Line Combo Inputs: 4
- Hi-Z Inputs: 2
- Stereo Line Inputs with Trim: 2
- RCA Stereo Line Input: 1
- External FX Return: 1 stereo
- USB Audio: Four assignable recording inputs
- Effects: Lexicon Reverb, Chorus and Delay
- EQ: 3-band EQ on mic channels
- USB Sample Rates: 44.1 kHz / 48 kHz
- Master Output: Stereo XLR
- Monitor Output: Stereo
- Aux Output: 1
- Construction: Metal enclosure
