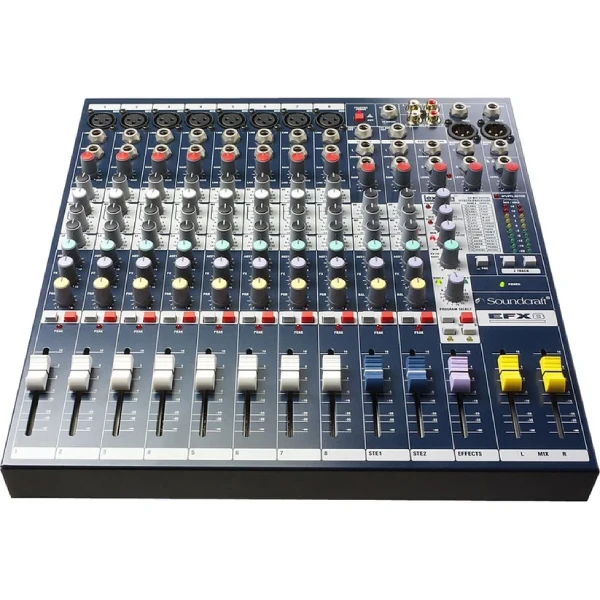

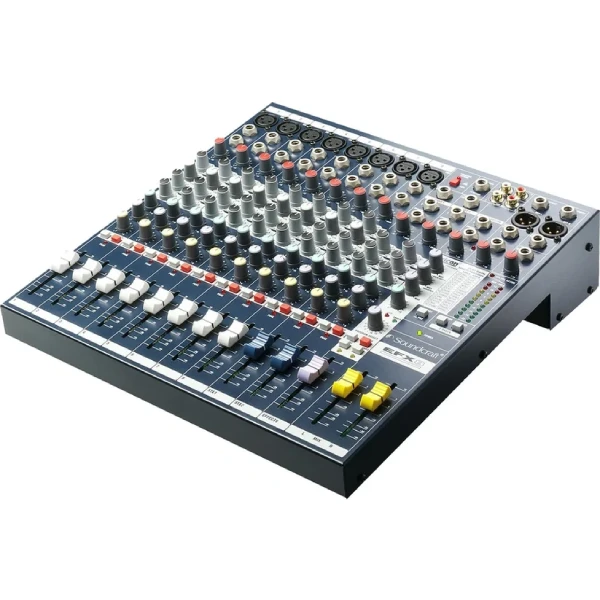

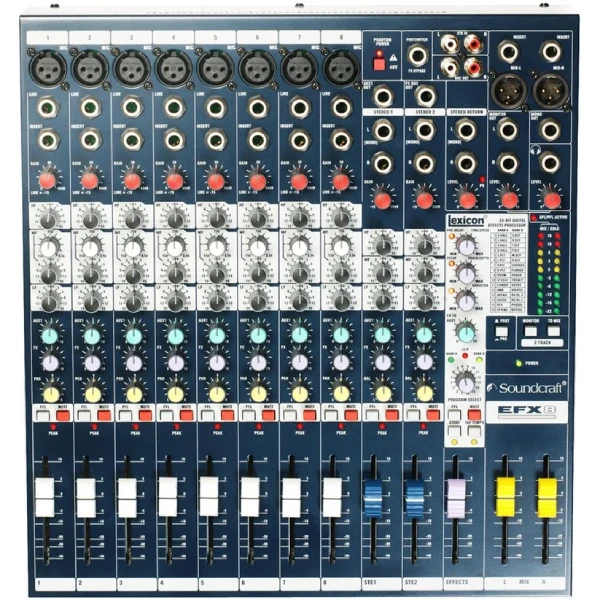

Soundcraft EFX8 8-Channel Mixer with Built-In Lexicon Effects
The Soundcraft EFX8 is a compact professional analogue mixer combining eight mono input channels, two stereo channels and a built-in 24-bit Lexicon digital effects processor. Designed for musicians, bands, houses of worship, venues and live sound applications, it combines Soundcraft GB30 microphone preamps, flexible EQ and 32 Lexicon effects in an easy-to-use console.
Key Features
- 8 mono input channels plus 2 stereo channels
- Built-in 24-bit Lexicon digital effects processor
- 32 selectable effects
- Tap Tempo and user effects setting store function
- Soundcraft GB30 microphone preamps
- 3-band EQ with swept mid on mono channels
- 3-band EQ on stereo channels
- Dedicated FX send on each channel
- One configurable auxiliary bus
- XLR and 1/4-inch jack connections
- RCA stereo playback input and record output
- Ten-segment LED output metering
- Headphone monitoring output
- Rack-mountable design
- Price: $1,500.00 NZD
Payment. Advance payment by card or digital wallet in NZD (GST included); no cash on delivery; shipping at customer cost by tracked NZ Post within New Zealand and to selected international destinations.
Warranty. Limited warranty on musical instruments and audio gear covers manufacturing faults; we repair first, then replace or refund, no change-of-mind refunds, custom orders non-refundable, and exchanges for unopened items considered under New Zealand consumer law.
Description
Soundcraft EFX8 8-Channel Mixer with Built-In Lexicon Effects
The Soundcraft EFX8 is a versatile analogue mixing console designed for users who want dependable Soundcraft audio quality together with high-quality built-in effects. It combines the core design of the Soundcraft EPM series with a 24-bit Lexicon digital effects processor, providing an integrated solution for live performances, rehearsals, houses of worship, music venues and other sound reinforcement applications.
At the heart of the EFX8 is a 24-bit Lexicon effects processor using AudioDNA technology. It provides 32 effects settings along with Tap Tempo, three effects parameter controls and the ability to store a user effects setting. This allows effects to be added directly from the mixer without requiring a separate external processor.
Soundcraft GB30 Microphone Preamps
The EFX8 uses Soundcraft’s GB30 microphone preamps, designed to provide transparent audio performance and plenty of control for microphones and other sources. The mixer provides eight mono mic/line input channels along with two stereo input channels, making it suitable for combining vocals, instruments and playback sources in one compact setup.
Flexible Channel EQ
Each mono input includes a 3-band EQ with a swept midrange, allowing more precise adjustment of important mid frequencies. The stereo channels also provide 3-band EQ, giving users straightforward control over the tonal balance of connected sources.
Practical Effects and Monitor Routing
Each channel includes a dedicated FX send, while a configurable auxiliary bus provides additional routing flexibility. This makes the EFX8 practical for setups requiring external monitoring or additional signal routing alongside the built-in effects section.
Professional Connectivity
The mixer provides XLR and 1/4-inch metal jack connections, RCA stereo playback inputs and record outputs, TRS inserts on the mono channels, a headphone output and comprehensive monitoring facilities. Ten-segment LED output meters provide a clear visual indication of the main signal level.
Built for Live and Installed Sound
With its compact layout, straightforward controls and rack-mountable construction, the Soundcraft EFX8 is well suited to bands, performers, houses of worship, theatres and music venues that need an analogue mixer with integrated professional-quality effects.
Important Specifications
| Feature | Details |
|---|---|
| Mono Input Channels | 8 |
| Stereo Input Channels | 2 |
| Built-In Effects | 24-bit Lexicon digital effects |
| Effects Presets | 32 |
| Mono Channel EQ | 3-band with swept mid |
| Stereo Channel EQ | 3-band |
| Aux Bus | 1 configurable |
| FX Send | 1 per channel |
| Output Metering | 10-segment LED |
| Rack Mountable | Yes |
| Weight | 4.6 kg |
